Circular Saw Blades · Solid Carbide · coarse pitch · Saw Cut B

Solid Carbide, standard DIN 1838, toothing DIN 1840BN, optional modification: coatings
Solid Carbide, standard DIN 1838, toothing DIN 1840BN, optional modification: coatings

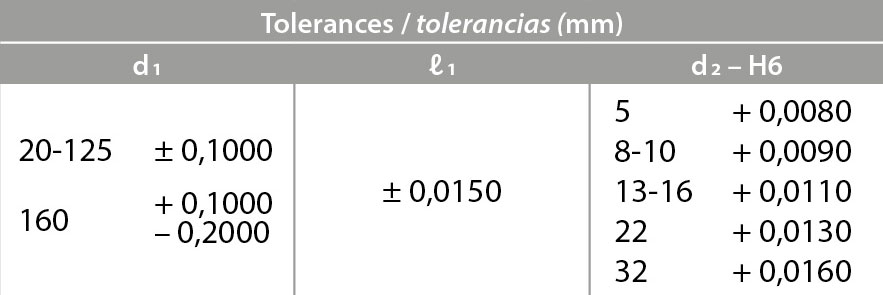

Tolerances: Outer-Diameter, Width, Arbor Hole
Outside Dia. 20 - 160
Rake angle 12°
Helix angle 0°
Cat.-No. 5120

Optional modification: coatings and/or alternating chamfers.

Metal Slitting Saws with coarse teeth and increased pitch for slotting and cut off operations of thick-walled pipes and profiles in abrasive and high-tensile materials.

Request article by clicking on the corresponding line.

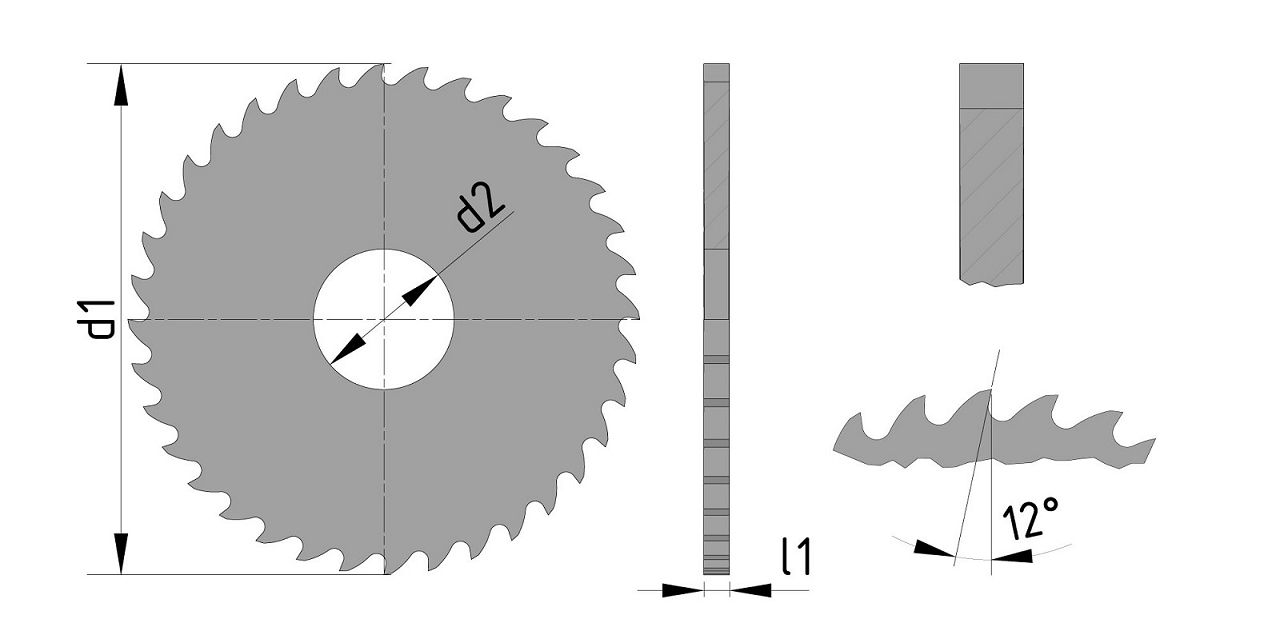

d1
mm		 l1
mm		 d2
mm		 Teeth Hub-Ø
mm		 ae max
mm		 Cat.-No. Item-No.
20 0,2 5 20 - 3,5 5120 51200200200001
20 0,25 5 20 - 3,5 5120 51200200250001
20 0,3 5 20 - 3,5 5120 51200200300001
20 0,4 5 20 - 3,5 5120 51200200400001
20 0,5 5 20 - 3,5 5120 51200200500001
20 0,6 5 20 - 3,5 5120 51200200600001
20 0,8 5 20 - 3,5 5120 51200200800001
20 1 5 20 - 3,5 5120 51200201000001
20 1,2 5 20 - 3,5 5120 51200201200001
20 1,6 5 20 - 3,5 5120 51200201600001
20 2 5 20 - 3,5 5120 51200202000001
25 0,2 8 24 - 5 5120 51200250200001
25 0,25 8 24 - 5 5120 51200250250001
25 0,3 8 24 - 5 5120 51200250300001
25 0,4 8 24 - 5 5120 51200250400001
25 0,5 8 24 - 5 5120 51200250500001
25 0,6 8 24 - 5 5120 51200250600001
25 0,8 8 24 - 5 5120 51200250800001
25 1 8 24 - 5 5120 51200251000001
25 1,2 8 24 - 5 5120 51200251200001
25 1,6 8 24 - 5 5120 51200251600001
25 2 8 24 - 5 5120 51200252000001
32 0,25 8 32 - 7,5 5120 51200320250001
32 0,3 8 32 - 7,5 5120 51200320300001
32 0,4 8 32 - 7,5 5120 51200320400001
32 0,5 8 32 - 7,5 5120 51200320500001
32 0,6 8 32 - 7,5 5120 51200320600001
32 0,8 8 32 - 7,5 5120 51200320800001
32 1 8 32 - 7,5 5120 51200321000001
32 1,2 8 32 - 7,5 5120 51200321200001
32 1,6 8 32 - 7,5 5120 51200321600001
32 2 8 32 - 7,5 5120 51200322000001
32 2,5 8 32 - 7,5 5120 51200322500001
40 0,25 10 40 - 9,5 5120 51200400250001
40 0,3 10 40 - 9,5 5120 51200400300001
40 0,4 10 40 - 9,5 5120 51200400400001
40 0,5 10 40 - 9,5 5120 51200400500001
40 0,6 10 40 - 9,5 5120 51200400600001
40 0,8 10 40 - 9,5 5120 51200400800001
40 1 10 40 - 9,5 5120 51200401000001
40 1,2 10 40 - 9,5 5120 51200401200001
40 1,6 10 40 - 9,5 5120 51200401600001
40 2 10 40 - 9,5 5120 51200402000001
40 2,5 10 40 - 9,5 5120 51200402500001
40 3 10 40 - 9,5 5120 51200403000001
50 0,25 13 40 - 11 5120 51200500250001
50 0,3 13 40 - 11 5120 51200500300001
50 0,4 13 40 - 11 5120 51200500400001
50 0,5 13 40 - 11 5120 51200500500001
50 0,6 13 40 - 11 5120 51200500600001
50 0,8 13 40 - 11 5120 51200500800001
50 1 13 40 - 11 5120 51200501000001
50 1,2 13 40 - 11 5120 51200501200001
50 1,6 13 40 - 11 5120 51200501600001
50 2 13 40 - 11 5120 51200502000001
50 2,5 13 40 - 11 5120 51200502500001
50 3 13 40 - 11 5120 51200503000001
63 0,25 16 40 - 14 5120 51200630250001
63 0,3 16 40 - 14 5120 51200630300001
63 0,4 16 40 - 14 5120 51200630400001
63 0,5 16 40 - 14 5120 51200630500001
63 0,6 16 40 - 14 5120 51200630600001
63 0,8 16 40 - 14 5120 51200630800001
63 1 16 40 - 14 5120 51200631000001
63 1,2 16 40 - 14 5120 51200631200001
63 1,6 16 40 - 14 5120 51200631600001
63 2 16 40 - 14 5120 51200632000001
63 2,5 16 40 - 14 5120 51200632500001
63 3 16 40 - 14 5120 51200633000001
80 0,3 22 50 - 20,5 5120 51200800300001
80 0,4 22 50 - 20,5 5120 51200800400001
80 0,5 22 50 - 20,5 5120 51200800500001
80 0,6 22 50 - 20,5 5120 51200800600001
80 0,8 22 50 - 20,5 5120 51200800800001
80 1 22 50 - 20,5 5120 51200801000001
80 1,2 22 50 - 20,5 5120 51200801200001
80 1,6 22 50 - 20,5 5120 51200801600001
80 2 22 50 - 20,5 5120 51200802000001
80 2,5 22 50 - 20,5 5120 51200802500001
80 3 22 50 - 20,5 5120 51200803000001
100 0,4 22 62 - 28,5 5120 51201000400001
100 0,5 22 62 - 28,5 5120 51201000500001
100 0,6 22 62 - 28,5 5120 51201000600001
100 0,8 22 62 - 28,5 5120 51201000800001
100 1 22 62 - 28,5 5120 51201001000001
100 1,2 22 62 - 28,5 5120 51201001200001
100 1,6 22 62 - 28,5 5120 51201001600001
100 2 22 62 - 28,5 5120 51201002000001
100 2,5 22 62 - 28,5 5120 51201002500001
100 3 22 62 - 28,5 5120 51201003000001
125 0,6 22 78 - 41 5120 51201250600001
125 0,8 22 78 - 41 5120 51201250800001
125 1 22 78 - 41 5120 51201251000001
125 1,2 22 78 - 41 5120 51201251200001
125 1,6 22 78 - 41 5120 51201251600001
125 2 22 78 - 41 5120 51201252000001
125 2,5 22 78 - 41 5120 51201252500001
125 3 22 78 - 41 5120 51201253000001
160 1 32 80 - 47 5120 51201601000001
160 1,2 32 80 - 47 5120 51201601200001
160 1,6 32 80 - 47 5120 51201601600001
160 2 32 80 - 47 5120 51201602000001
160 2,5 32 80 - 47 5120 51201602500001
160 3 32 80 - 47 5120 51201603000001
You're looking for an individual solution for your own application?
We will assist you with our experience - so contact us!
