Circular Saw Blades · Solid Carbide · fine pitch · Saw Cut A

Solid Carbide, standard DIN 1837, toothing DIN 1840AN, optional modification: coatings

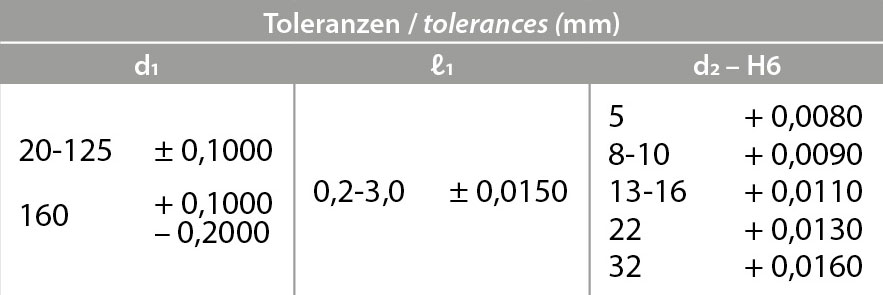

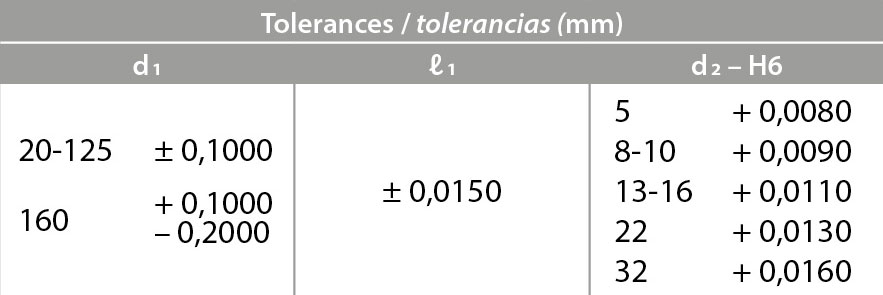

Tolerances Outer-Solid Carbide, standard DIN 1837, toothing DIN 1840AN, optional modification: coatingsDiameter, Width, Arbor Hole
Tolerances Outer-Diameter, Width, Arbor Hole
Outside Dia. 20 - 160

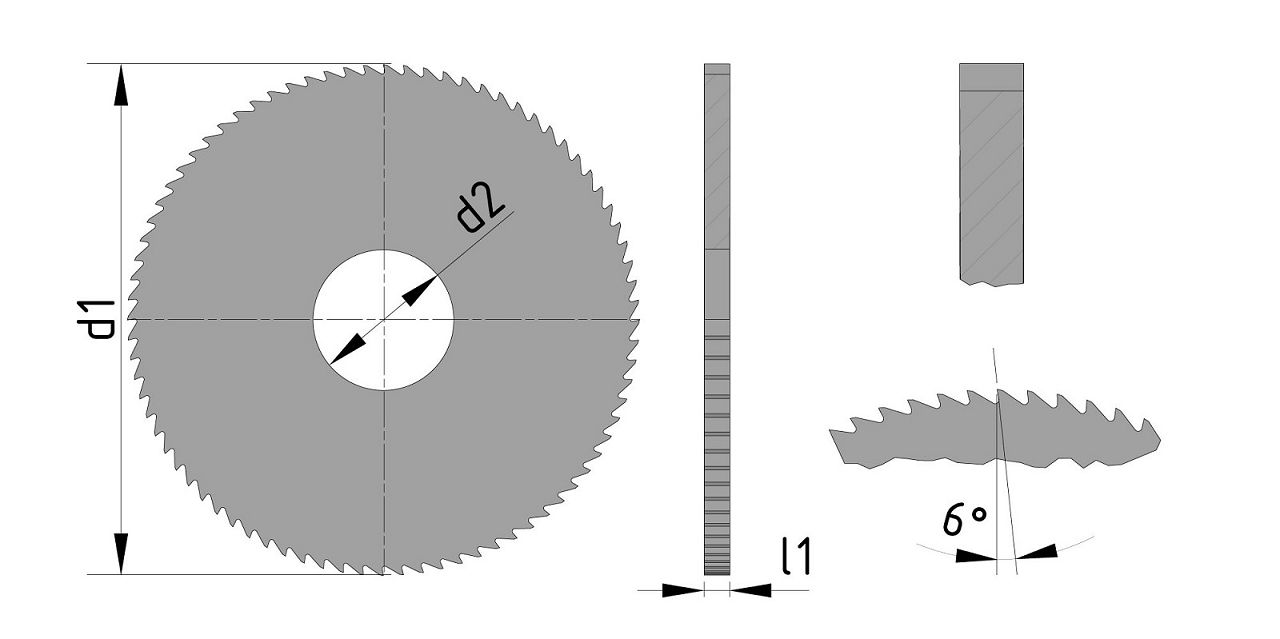

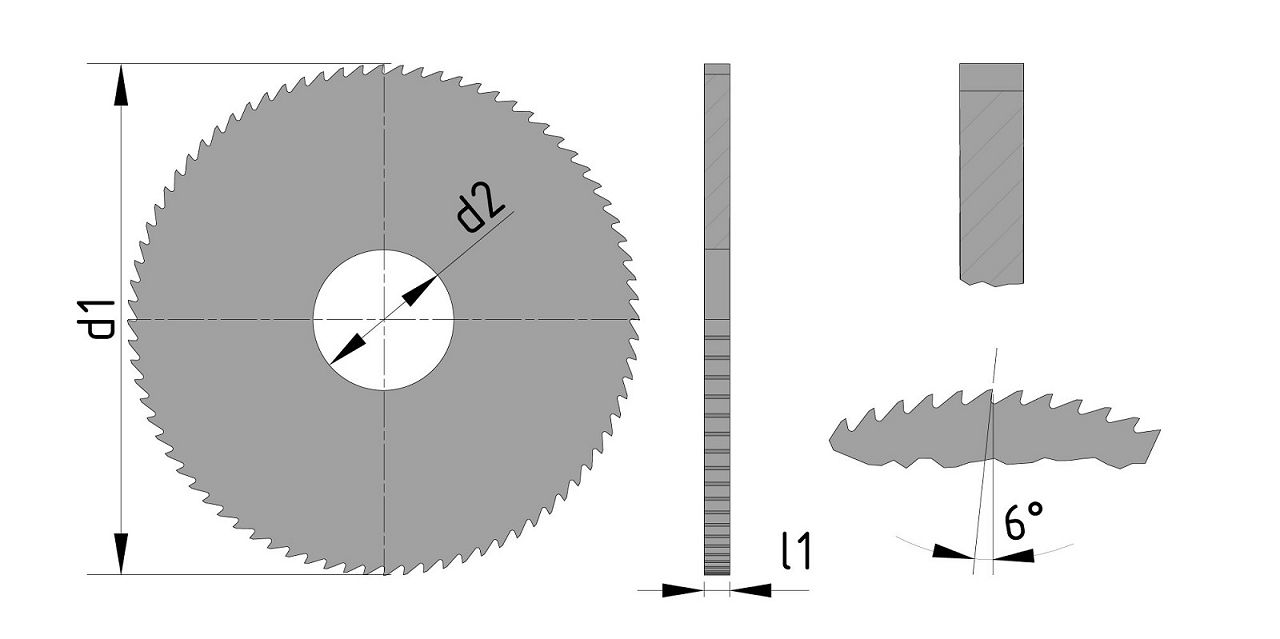

Rake angle 6°
Helix angle 0°
Cat.-No. 5110

Optional modification: coatings and/or alternating chamfers.

Metal Slitting Saws with fine pitch and small flutes for slotting and cutting off operations of thin profiles and pipes in abrasive and high-tensile materials.

For cutting off solid materials we recommend our Metal Slitting Saws with coarse pitch, made of Solid Carbide with Rounded Tooth B.

Request article by clicking on the corresponding line.

d1
mm		 l1
mm		 d2
mm		 Teeth Hub-Ø
mm		 ae max
mm		 Cat.-No. Item-No.
20 0,2 5 40 - 3,5 5110 51100200200001
20 0,25 5 40 - 3,5 5110 51100200250001
20 0,3 5 40 - 3,5 5110 51100200300001
20 0,4 5 40 - 3,5 5110 51100200400001
20 0,5 5 40 - 3,5 5110 51100200500001
20 0,6 5 40 - 3,5 5110 51100200600001
20 0,8 5 40 - 3,5 5110 51100200800001
20 1 5 40 - 3,5 5110 51100201000001
20 1,2 5 40 - 3,5 5110 51100201200001
20 1,6 5 40 - 3,5 5110 51100201600001
20 2 5 40 - 3,5 5110 51100202000001
25 0,2 8 50 - 5 5110 51100250200001
25 0,25 8 50 - 5 5110 51100250250001
25 0,3 8 50 - 5 5110 51100250300001
25 0,4 8 50 - 5 5110 51100250400001
25 0,5 8 50 - 5 5110 51100250500001
25 0,6 8 50 - 5 5110 51100250600001
25 0,8 8 50 - 5 5110 51100250800001
25 1 8 50 - 5 5110 51100251000001
25 1,2 8 50 - 5 5110 51100251200001
25 1,6 8 50 - 5 5110 51100251600001
25 2 8 50 - 5 5110 51100252000001
32 0,25 8 62 - 7,5 5110 51100320250001
32 0,3 8 62 - 7,5 5110 51100320300001
32 0,4 8 62 - 7,5 5110 51100320400001
32 0,5 8 62 - 7,5 5110 51100320500001
32 0,6 8 62 - 7,5 5110 51100320600001
32 0,8 8 62 - 7,5 5110 51100320800001
32 1 8 62 - 7,5 5110 51100321000001
32 1,2 8 62 - 7,5 5110 51100321200001
32 1,6 8 62 - 7,5 5110 51100321600001
32 2 8 62 - 7,5 5110 51100322000001
32 2,5 8 62 - 7,5 5110 51100322500001
40 0,25 10 78 - 9,5 5110 51100400250001
40 0,3 10 78 - 9,5 5110 51100400300001
40 0,4 10 78 - 9,5 5110 51100400400001
40 0,5 10 78 - 9,5 5110 51100400500001
40 0,6 10 78 - 9,5 5110 51100400600001
40 0,8 10 78 - 9,5 5110 51100400800001
40 1 10 78 - 9,5 5110 51100401000001
40 1,2 10 78 - 9,5 5110 51100401200001
40 1,6 10 78 - 9,5 5110 51100401600001
40 2 10 78 - 9,5 5110 51100402000001
40 2,5 10 78 - 9,5 5110 51100402500001
40 3 10 78 - 9,5 5110 51100403000001
50 0,25 13 78 - 11 5110 51100500250001
50 0,3 13 78 - 11 5110 51100500300001
50 0,4 13 78 - 11 5110 51100500400001
50 0,5 13 78 - 11 5110 51100500500001
50 0,6 13 78 - 11 5110 51100500600001
50 0,8 13 78 - 11 5110 51100500800001
50 1 13 78 - 11 5110 51100501000001
50 1,2 13 78 - 11 5110 51100501200001
50 1,6 13 78 - 11 5110 51100501600001
50 2 13 78 - 11 5110 51100502000001
50 2,5 13 78 - 11 5110 51100502500001
50 3 13 78 - 11 5110 51100503000001
63 0,25 16 80 - 14 5110 51100630250001
63 0,3 16 80 - 14 5110 51100630300001
63 0,4 16 80 - 14 5110 51100630400001
63 0,5 16 80 - 14 5110 51100630500001
63 0,6 16 80 - 14 5110 51100630600001
63 0,8 16 80 - 14 5110 51100630800001
63 1 16 80 - 14 5110 51100631000001
63 1,2 16 80 - 14 5110 51100631200001
63 1,6 16 80 - 14 5110 51100631600001
63 2 16 80 - 14 5110 51100632000001
63 2,5 16 80 - 14 5110 51100632500001
63 3 16 80 - 14 5110 51100633000001
80 0,3 22 100 - 20,5 5110 51100800300001
80 0,4 22 100 - 20,5 5110 51100800400001
80 0,5 22 100 - 20,5 5110 51100800500001
80 0,6 22 100 - 20,5 5110 51100800600001
80 0,8 22 100 - 20,5 5110 51100800800001
80 1 22 100 - 20,5 5110 51100801000001
80 1,2 22 100 - 20,5 5110 51100801200001
80 1,6 22 100 - 20,5 5110 51100801600001
80 2 22 100 - 20,5 5110 51100802000001
80 2,5 22 100 - 20,5 5110 51100802500001
80 3 22 100 - 20,5 5110 51100803000001
100 0,4 22 126 - 28,5 5110 51101000400001
100 0,5 22 126 - 28,5 5110 51101000500001
100 0,6 22 126 - 28,5 5110 51101000600001
100 0,8 22 126 - 28,5 5110 51101000800001
100 1,2 22 126 - 28,5 5110 51101001200001
100 1,6 22 126 - 28,5 5110 51101001600001
100 2 22 126 - 28,5 5110 51101002000001
100 1 22 126 - 28,5 5110 51101001000001
100 2,5 22 126 - 28,5 5110 51101002500001
100 3 22 126 - 28,5 5110 51101003000001
125 0,6 22 124 - 41 5110 51101250600001
125 0,8 22 124 - 41 5110 51101250800001
125 1 22 124 - 41 5110 51101251000001
125 1,2 22 124 - 41 5110 51101251200001
125 1,6 22 124 - 41 5110 51101251600001
125 2 22 124 - 41 5110 51101252000001
125 2,5 22 124 - 41 5110 51101252500001
125 3 22 124 - 41 5110 51101253000001
160 1 32 160 - 47 5110 51101601000001
160 1,2 32 160 - 47 5110 51101601200001
160 1,6 32 160 - 47 5110 51101601600001
160 2 32 160 - 47 5110 51101602000001
160 2,5 32 160 - 47 5110 51101602500001
160 3 32 160 - 47 5110 51101603000001
You're looking for an individual solution for your own application?
We will assist you with our experience - so contact us!
